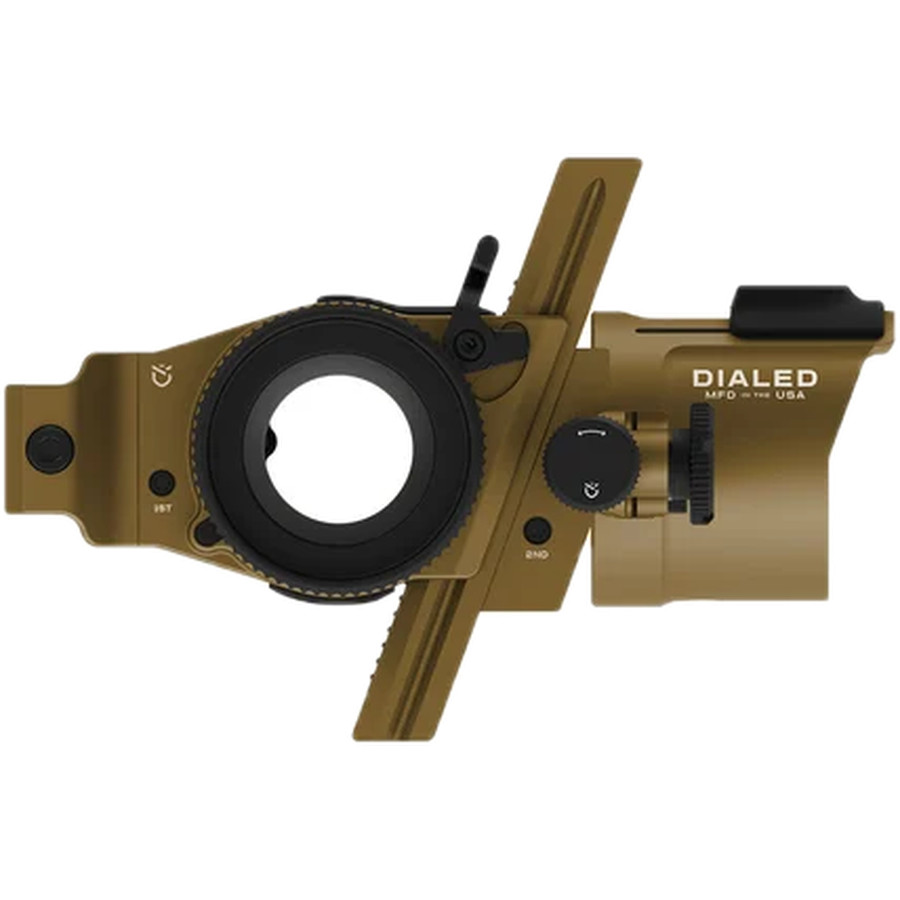

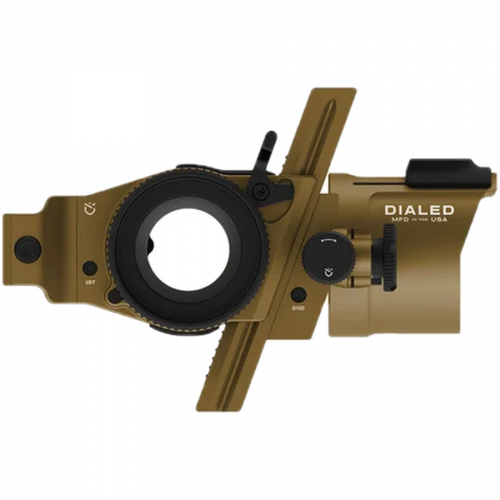

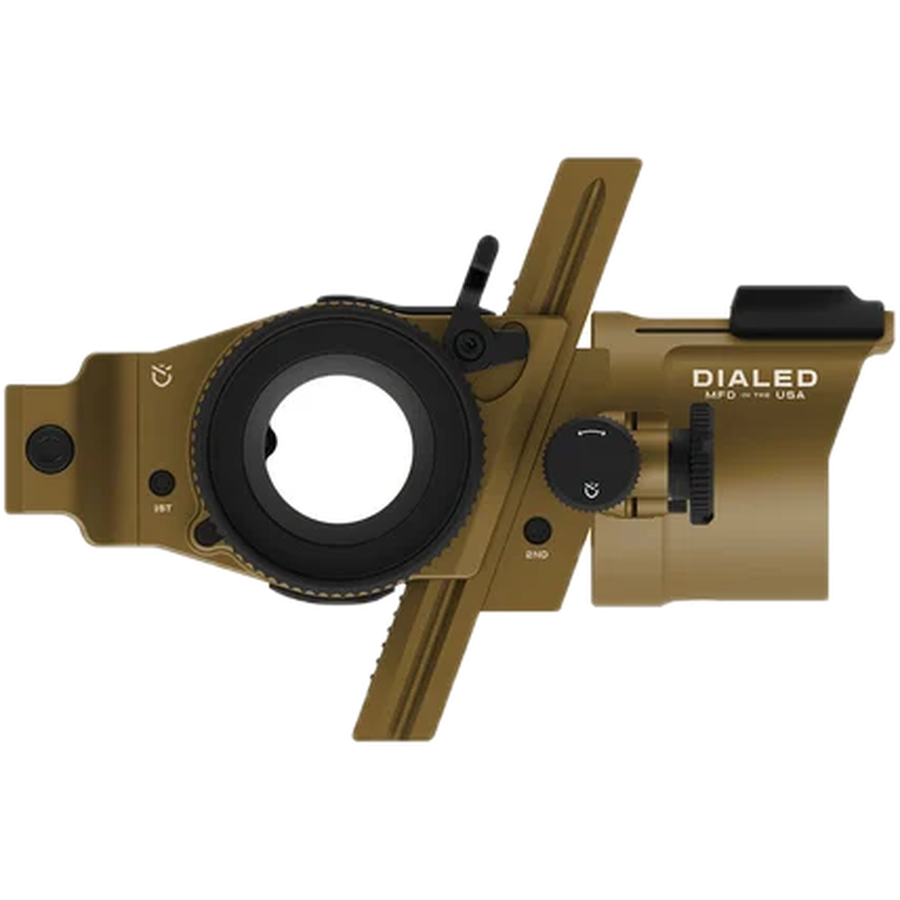

Slider sight with a Picatinny mount, for risers with a Picatinny interface.

The Picatinny version clamps onto the rail on the riser. Its position along the rail is free to choose, which allows the distance between eye and sight housing to be set to the sight picture wanted.

The PRÃœF is a slider sight: aiming works via a distance set on the dial rather than through fixed pins. The sight housing is interchangeable, so the sight can be run with one, three or five pins without replacing it.

Elevation runs on an angled track, which Dialed calls the Angled Elevation System. It provides more usable travel before the housing runs into the vanes, which is the limiting factor at long distances. Windage is fine tuned without tools, first, second and third axis are accessible, and the SHIFT lever sets how light or firm the dial feels.

Two SwitchTape rings and up to six indicator needles allow several tapes to be carried at once, for two different arrows for instance, or for indoors and outdoors.

Specifications

• Type: slider sight with interchangeable housing
• Mount: Picatinny
• Material: machined aluminium
• Finish: Cerakote
• Weight: from 9.8 oz (278 g)
• Pins: 1, 3 or 5 depending on housing
• Pin diameter: .010" or .019"
• First, second and third axis adjustable
• Tool free windage adjustment
• Available for right and left hand
• Colours: several Cerakote colours, see selection
• Supplied with: sight and tape booklet holding 48 pre-printed tapes, a test tape and blank tapes
• Made in USA

Sight housing and pin diameter

The housings are interchangeable, so moving from one pin to three later does not mean replacing the whole sight.

Note

• This version requires a Picatinny rail on the riser. Mathews bows with Bridge-Lock take the dovetail version, all other bows the riser mount version.
• The housings are interchangeable, so the number of pins can be changed later.
• The selection shows which housings and pin diameters are available.
