Name: Easton 5mm Match Grade HIT Collar (6/pk)
Brand: Easton
SKU: 10693
Price: 21.95 EUR
Availability: OutOfStock

Easton 5mm Match Grade HIT Collar (6/pk)

Easton 5mm Match Grade HIT Collar (6/pk)

21,95 €
incl. 20% VAT plus shipping

Manufacturer: Easton

Model: 5MMHITCOLLAR

Shipping weight: 0.025 kg

currently not in stock

for details see Availability

Configure article:

type

QTY :

Add to Wishlist

Ask a question

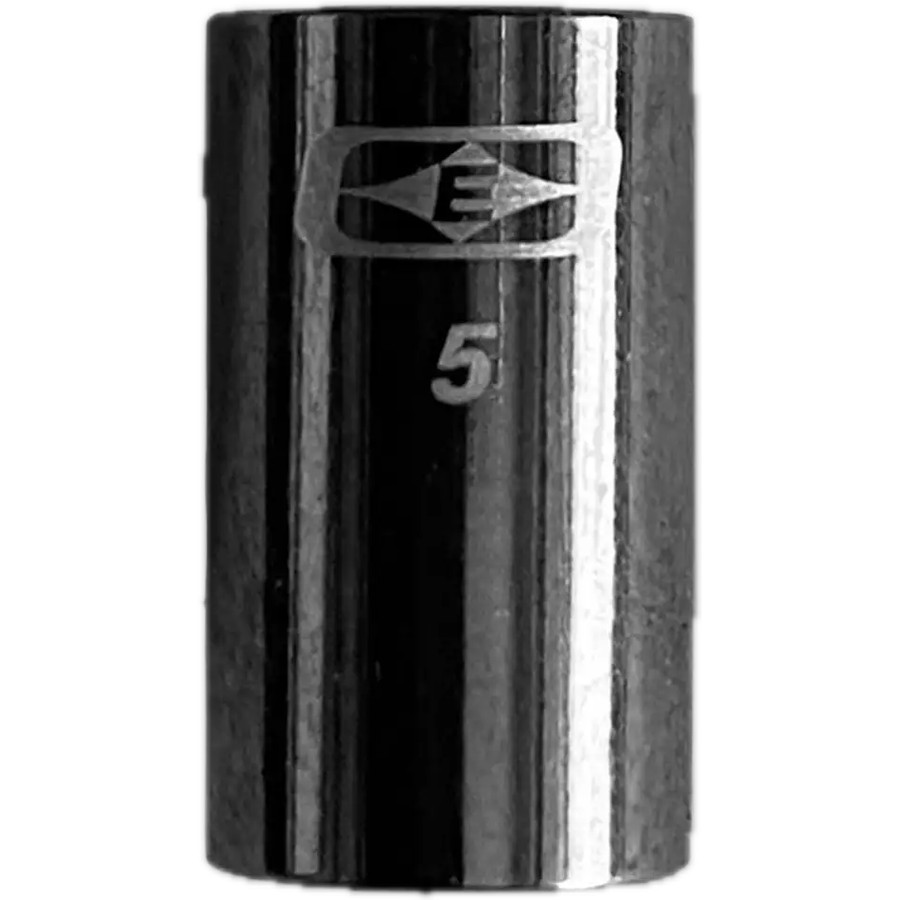

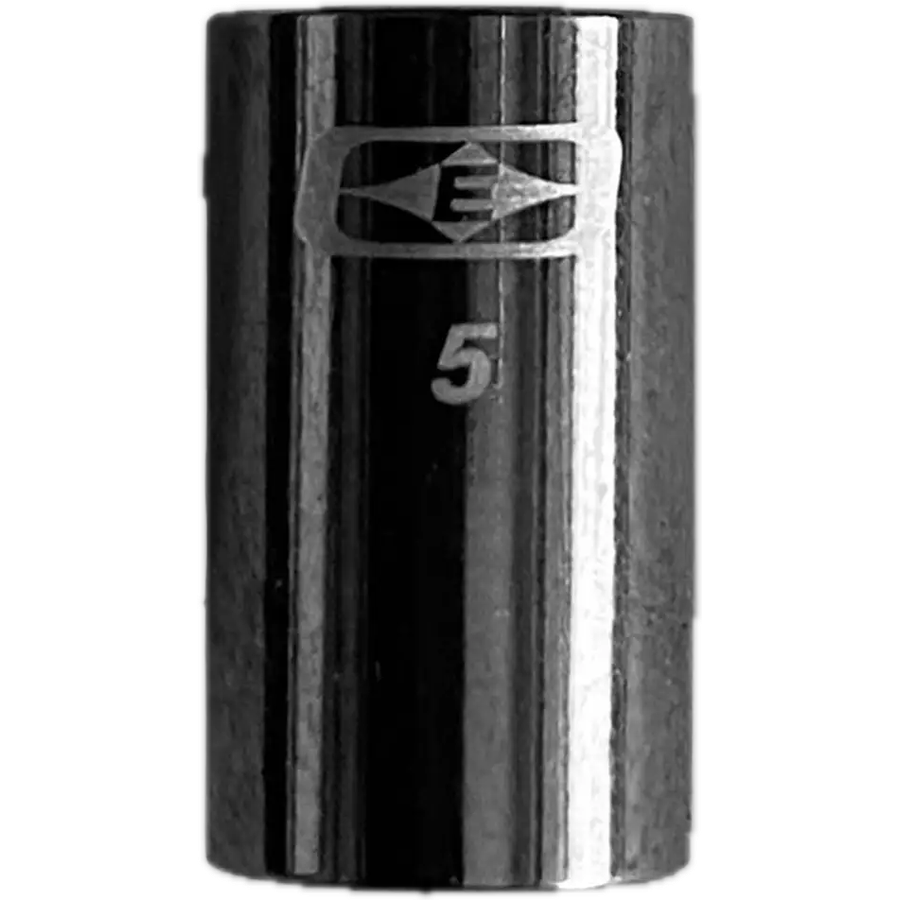

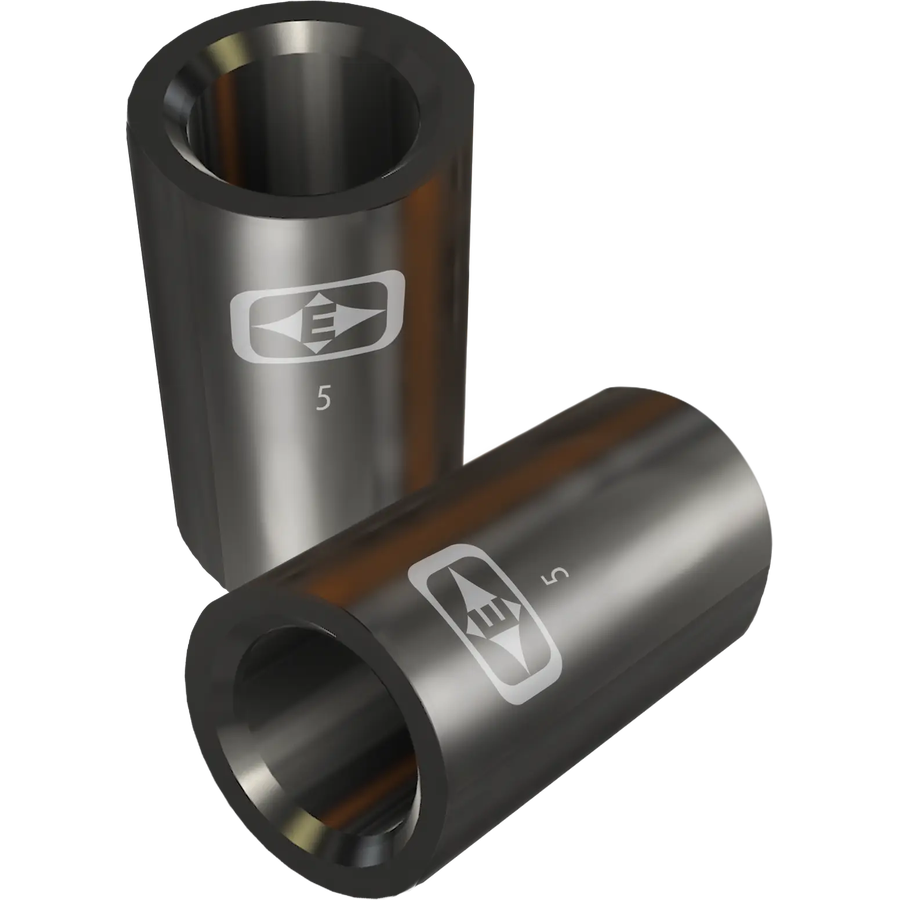

Hardened stainless steel reinforcing collar for the point end of shafts using the 5 mm HIT system.

The collar slides over the point end and takes up the load that impact on hard targets puts on the shaft wall. That is exactly where an unreinforced HIT shaft gives way first, because the insert sits inside and channels the force into the wall.

Size follows the outside diameter of the shaft at the point end, and therefore the model and the spine.

Specifications

Material: hardened stainless steel
For shafts using the 5 mm HIT system
Packaging: 6 pieces

Sizes, inside diameter and weight
Size	Inside diameter	Weight
#0.5	.255"	22 gr
#1	.259"	21 gr
#1.5	.263"	20 gr
#2	.266"	19 gr
#2.5	.269"	17 gr
#3	.272"	17 gr
#4	.277"	17 gr
#5	.282"	16 gr
#6	.290"	15 gr

Matching on the FMJ Max
Spine	Collar
200	#5
250	#3
300	#2
340	#1.5
400	#1

Note

Suits the Easton Axis, FMJ, Carbon Legacy, 5.0 and Sonic 6.0 among others. The right size depends on the model and the spine.
Depending on size the collar adds 15 to 22 grain at the front of the arrow. That raises FOC and changes dynamic spine.
The Sonic 6.0 additionally requires its own brass inserts.

For more information, please visit the manufacturer website for this product .
