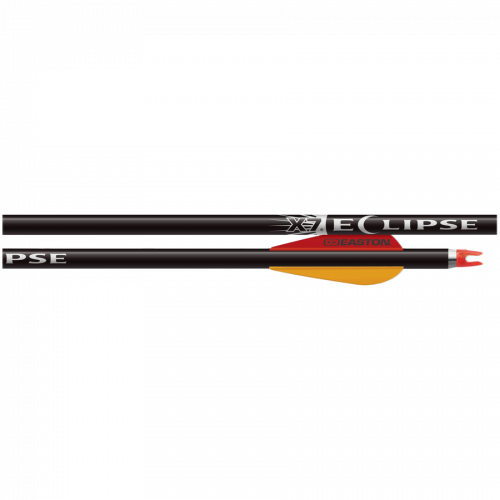

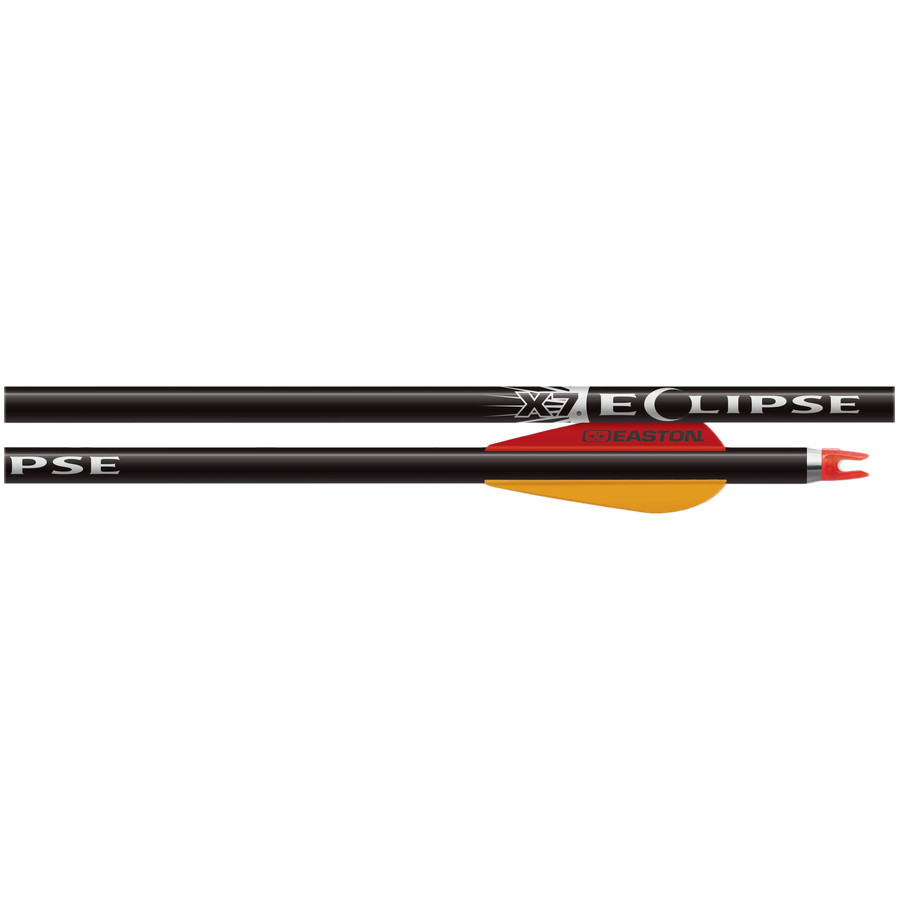

Name: Easton X7 Eclipse Aluminium Shaft
Brand: Easton
SKU: 10651
Price: 11.95 EUR
Availability: OutOfStock

Easton X7 Eclipse Aluminium Shaft

11,95 €
incl. 20% VAT plus shipping

Manufacturer: Easton

Quantity Discounts available! starting at 9,95 €

Model: X7ECLIPSE

Shipping weight: 0.02 kg

currently not in stock

for details see Availability

Configure article:

spine

Please enter the desired length in cm, mm or inches here and mandatory provide us the information
if we should cut (NB) from nockbed to the end of the shaft or (SL) pure shaft length!

Shorten arrows

( +0,50 € )

Min: 3 Units: 3

QTY :

Add to Wishlist

Ask a question

Hard-anodised aluminium shaft in 7178-T9, the reference point for consistent arrows in training and competition for decades.

The X7 Eclipse is drawn from an aerospace alloy with 105,000 psi tensile strength and sorted to ±.001" straightness with a weight tolerance of ±0.75 percent. Aluminium is forgiving to build with: spine is identical along the whole shaft, cutting changes it predictably, and a bent shaft can be straightened rather than written off.

Bushings are installed at the factory. Sizes up to and including 1914 carry a G-UNI bushing for G size nocks, sizes from 2014 upwards a Super UNI bushing for S size nocks. Nocks and points are chosen separately so weight and nock fit suit the build.

Features

Hard-anodised black finish
Bushing installed at the factory, G-UNI or Super UNI depending on size
Consistent spine along the entire shaft
Fourteen sizes from 1514 to 2613
Sizes 1514 through 2214 comply with World Archery rules
Made in USA

Specifications

Material: 7178-T9 aluminium
Tensile strength: 105,000 psi
Straightness: ±.001"
Weight tolerance: ±0.75 percent
Finish: hard-anodised black
Nock system: G-UNI bushing (4 mm) up to size 1914, Super UNI bushing (6.5 mm) from size 2014

Sizes, spine and stock length
Size	Spine	GPI	Outside diameter	Bushing	Stock length
2613	.272	11.5	10.52 mm (.414")	Super UNI	34.75"
2512	.329	10.3	10.11 mm (.398")	Super UNI	34.5"
2511	.348	9.6	10.06 mm (.396")	Super UNI	34.5"
2413	.372	10.5	9.45 mm (.372")	Super UNI	34"
2214	.431	10.4	8.84 mm (.348")	Super UNI	33.38"
2213	.464	9.9	8.74 mm (.344")	Super UNI	33.5"
2212	.505	8.8	8.76 mm (.345")	Super UNI	32.5"
2114	.511	9.9	8.33 mm (.328")	Super UNI	32.5"
2014	.584	9.6	7.98 mm (.314")	Super UNI	31.63"
1914	.663	9.3	7.62 mm (.300")	G-UNI	30.88"
1814	.804	8.6	7.21 mm (.284")	G-UNI	29.88"
1714	.967	8.1	6.81 mm (.268")	G-UNI	29.38"
1614	1.157	7.7	6.38 mm (.251")	G-UNI	28.25"
1514	1.384	6.8	6.20 mm (.244")	G-UNI	26.5"

Information about shortening arrows or shafts
We will gladly shorten your arrows! Simply enter the desired arrow length in the appropriate field when you choose your arrow. Unless otherwise instructed we shorten arrows from Nock Throat (=where the string sits) to end of the shaft (=no point). For measuring we always use original components. We never consider the point in our measurements. If you leave the input field blank, we deliver the arrows in stock length (full length). No subsequent changes are possible.

Note

Nocks and points are not included and are selected to match the size.
The bushing is already installed.
Pictures are symbolic - no nocks and fletches included.

Please order only in multiples of 3, ie 3, 6, 9 pieces etc, otherwise you will get an error message "invalid quantity" in the shopping cart!

For more information, please visit the manufacturer website for this product .
