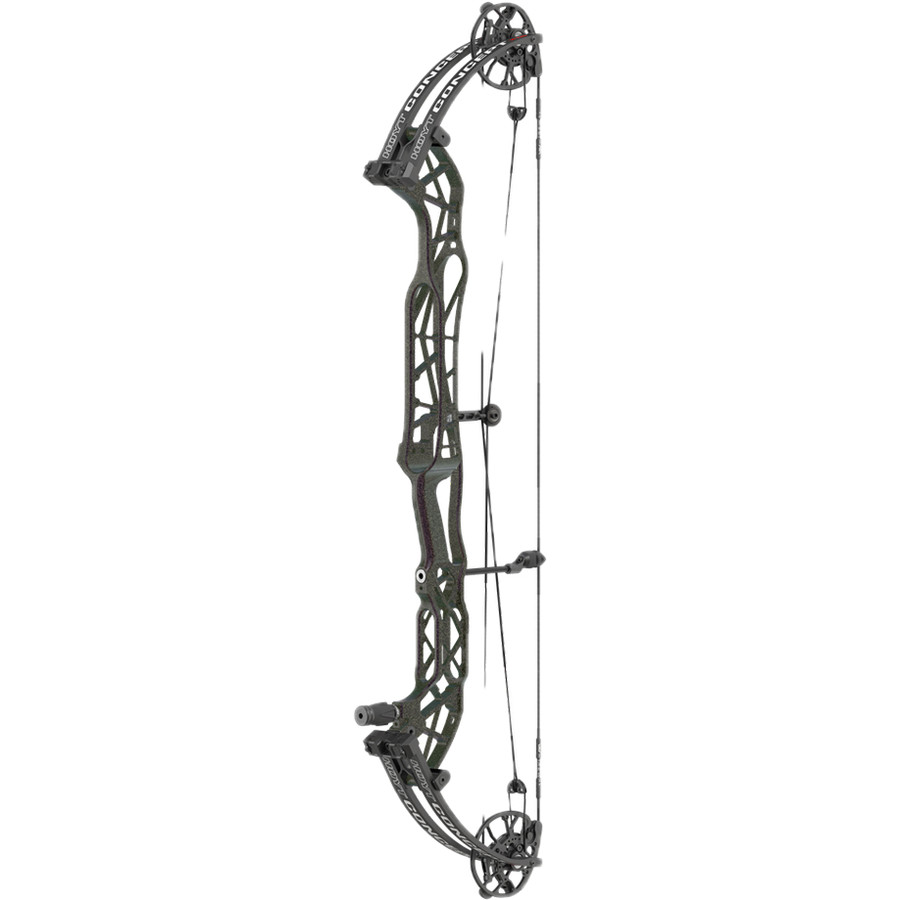

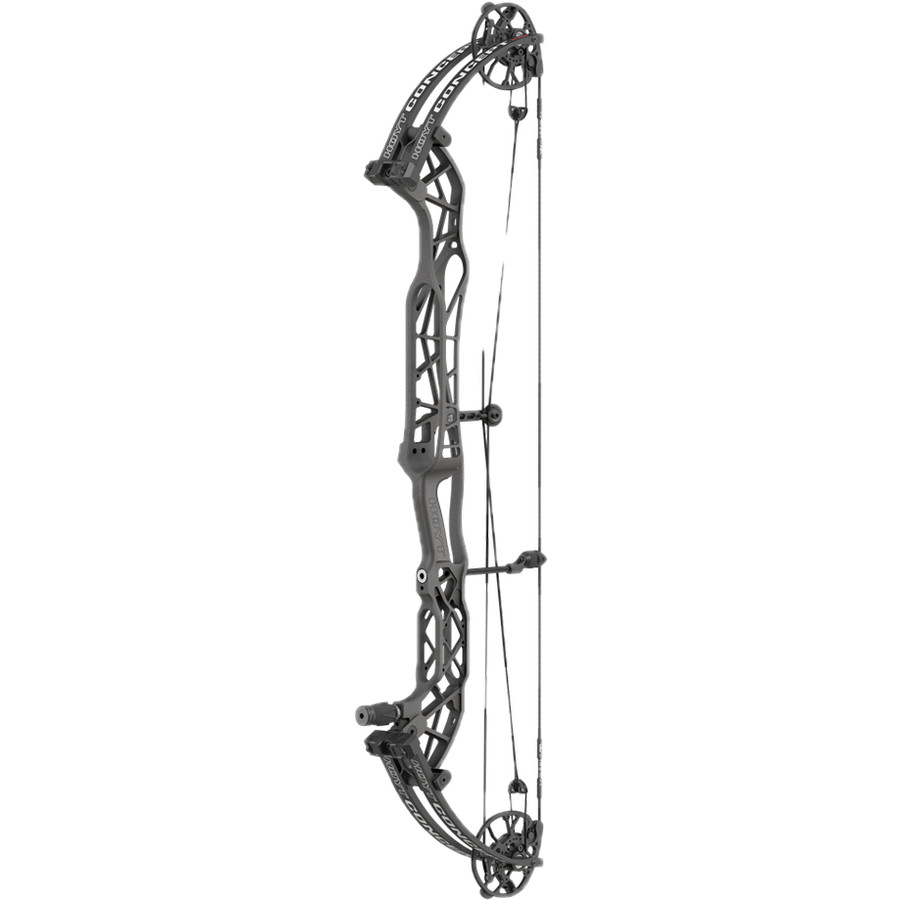

Name: Hoyt Concept XTS 40 Compound Bow
Brand: Hoyt
SKU: 10607
Price: 2089 EUR
Availability: OutOfStock

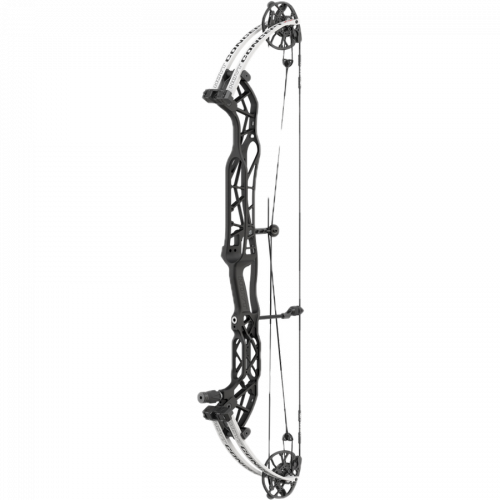

Hoyt Concept XTS 40 Compound Bow

2.089,00 €
incl. 20% VAT plus shipping

Manufacturer: Hoyt

Model: HOYT-CONC-40

Shipping weight: 4 kg

currently not in stock

for details see Availability

Configure article:

left/right

color

draw weight

option

QTY :

Add to Wishlist

Ask a question

The Concept XTS 40 is the longest and steadiest of the three Concept XTS bows, made for archers who want every last bit of stability at distance.

40 inches axle to axle and a 7.25 inch brace height give the most forgiving bow in the range. It holds the steadiest at full draw and punishes small imprecisions on release the least, which puts it at home outdoors and at long distances above all. The price is 5.15 pounds of mass weight and a slightly lower 329 fps, both consequences of the very build that makes it calm.

Like the shorter models it runs the SCTR 2.0 cam system, smoother at the front and end of the draw force curve than the generation before it.

Draw length comes from the module. The CDM covers 26 to 32 inches, the TDM 30 to 32 inches. Both are rotating modules in half inch steps, with the TDM drawing softer at its top position and intended for archers with a long draw. The modular grip system adds grip plates at 0, plus 4 and plus 8 degrees, each also in a version an eighth of an inch shorter.

Features

40 inches axle to axle, the steadiest hold in the range
7.25 inch brace height, forgiving on release
SCTR 2.0 cam system, smoother at the front and end of the draw force curve
Draw length set by rotating modules in half inch steps

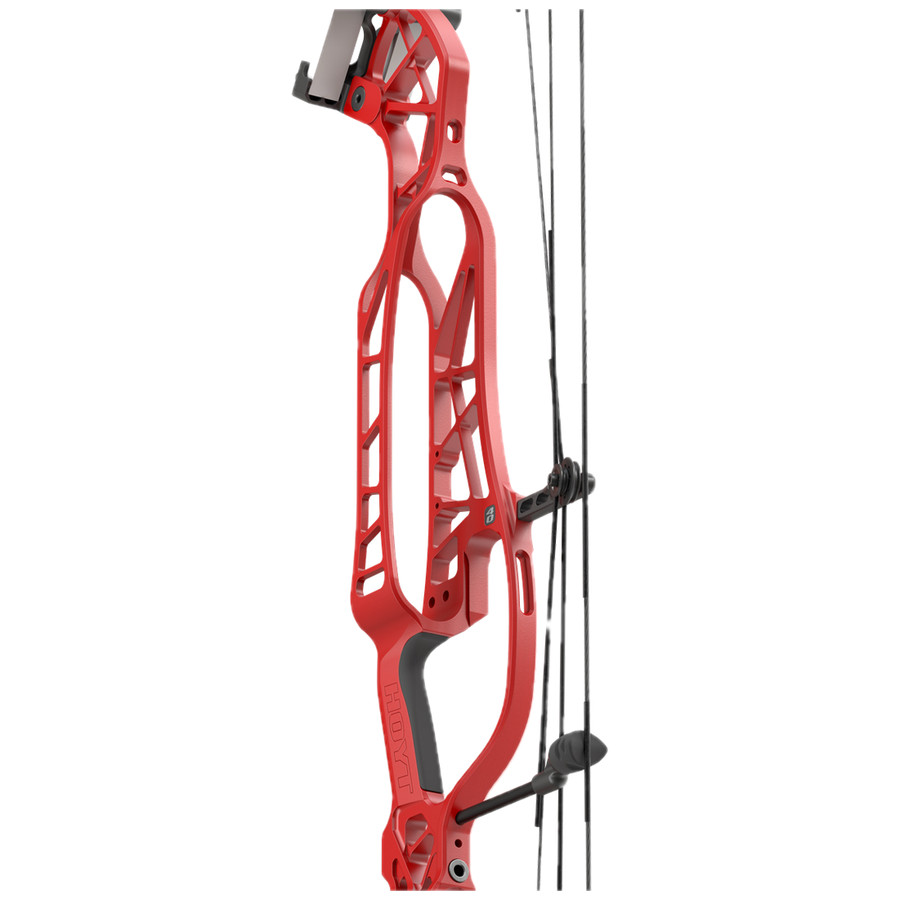

Modular grip system with six grip plates
Available in right and left hand

Specifications

Axle to axle: 40 inches
Brace height: 7.25 inches
Speed: 329 fps
Mass weight: 5.15 lbs
Cam system: SCTR 2.0
Draw length with CDM: 26 to 32 inches
Draw length with TDM: 30 to 32 inches
Draw weights: 40, 50, 55, 60, 65 and 70 lbs
Grip plates: 0, plus 4 and plus 8 degrees, each also with minus 1/8 inch

Available Versions

CDM module for 26 to 32 inches or TDM for 30 to 32 inches
Right or left hand

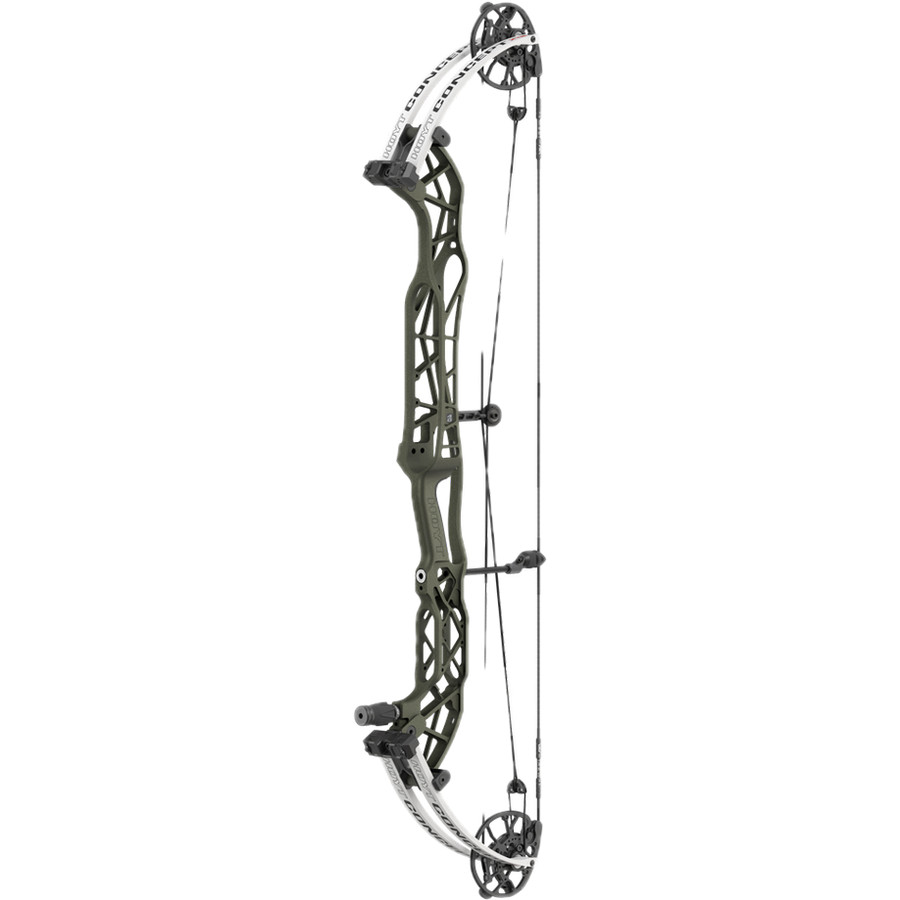

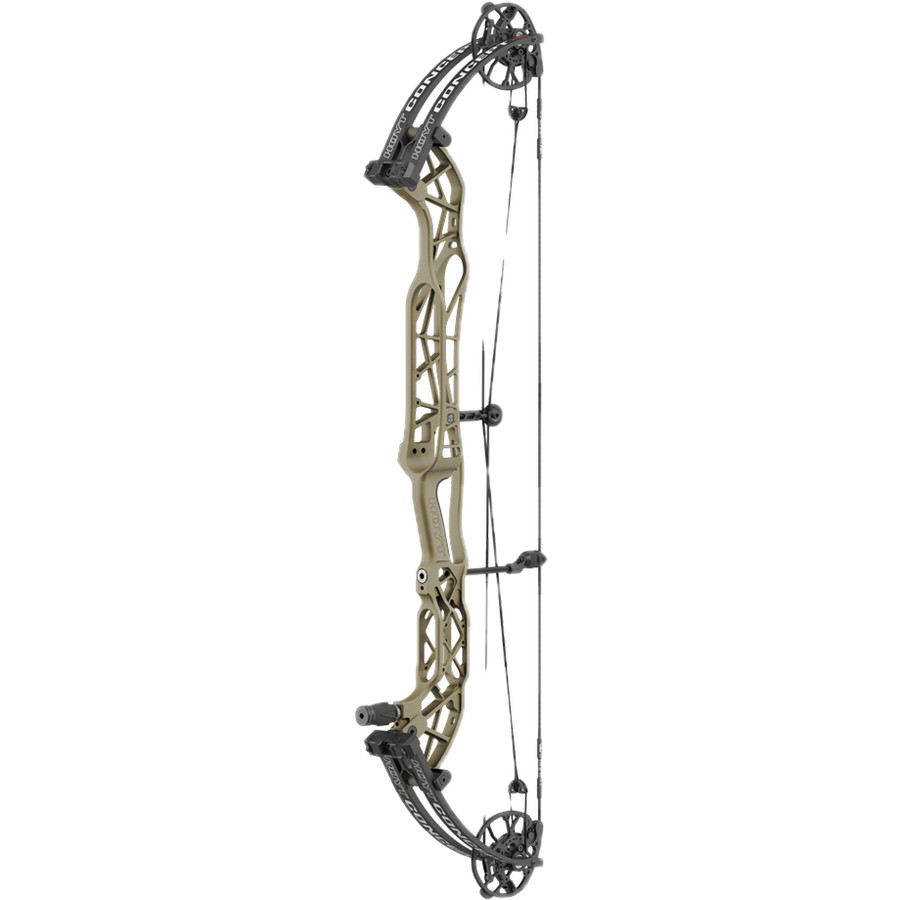

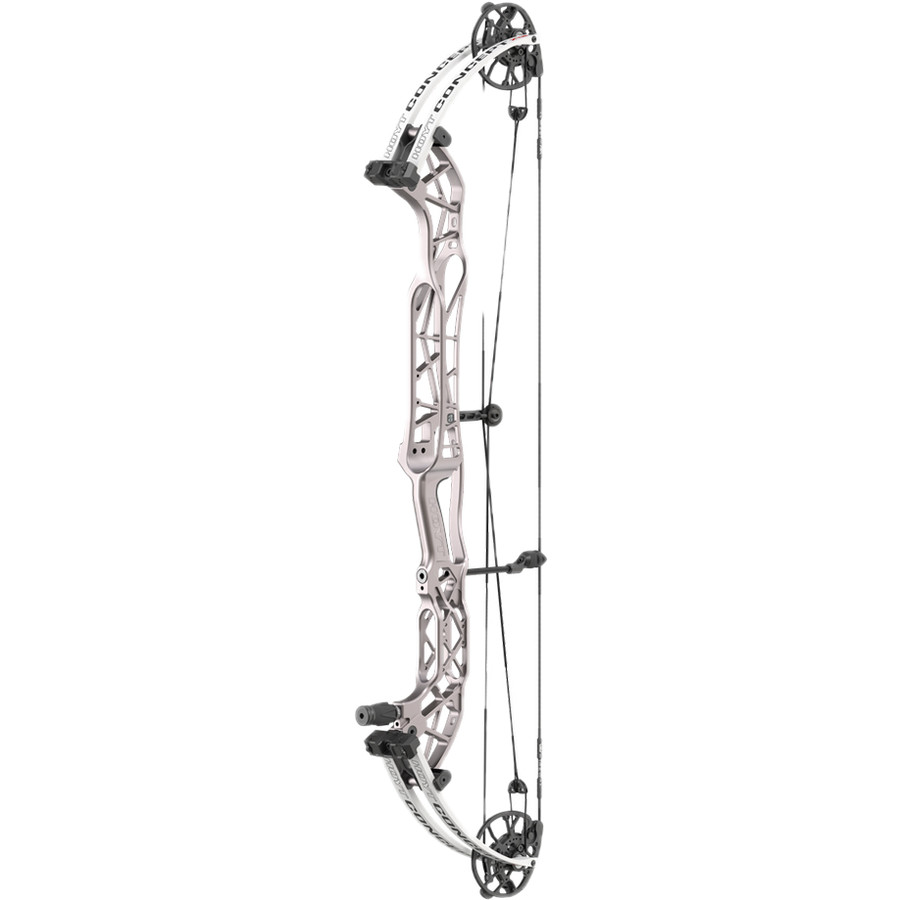

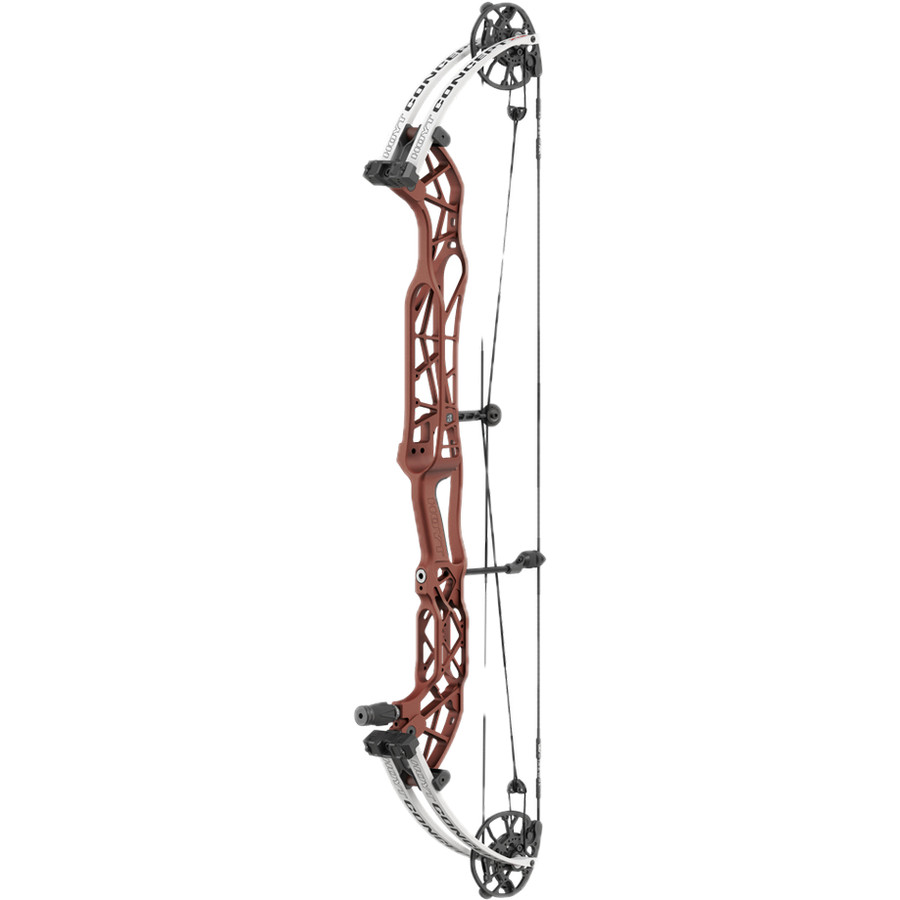

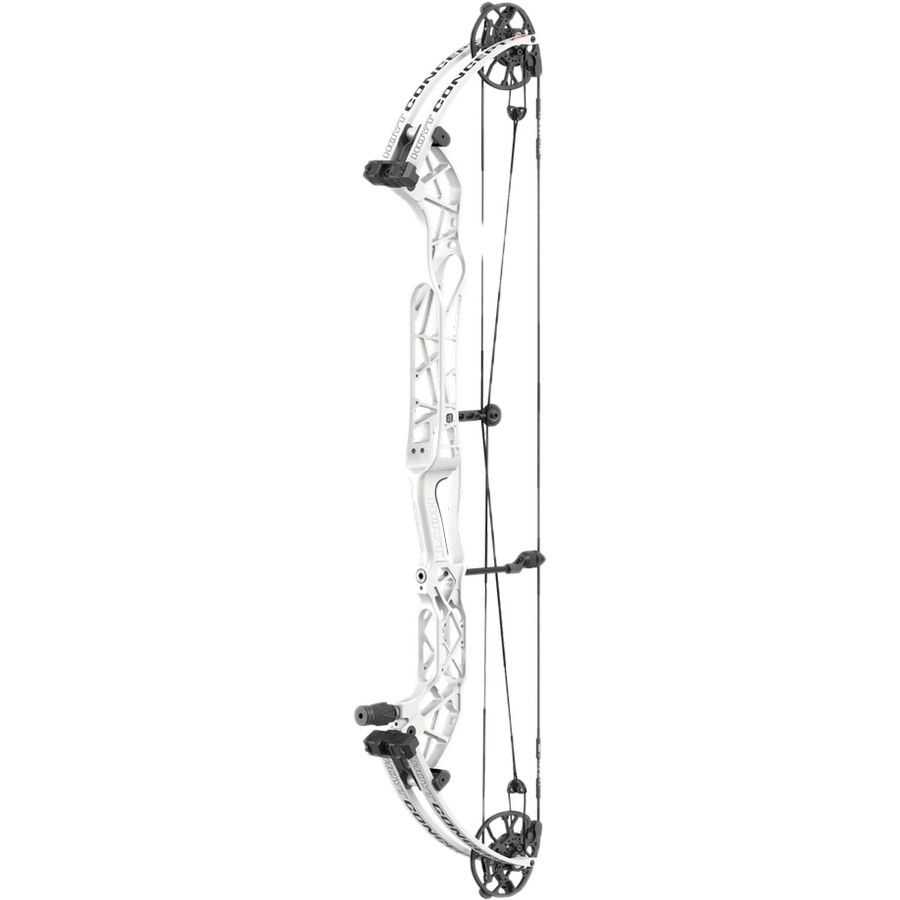

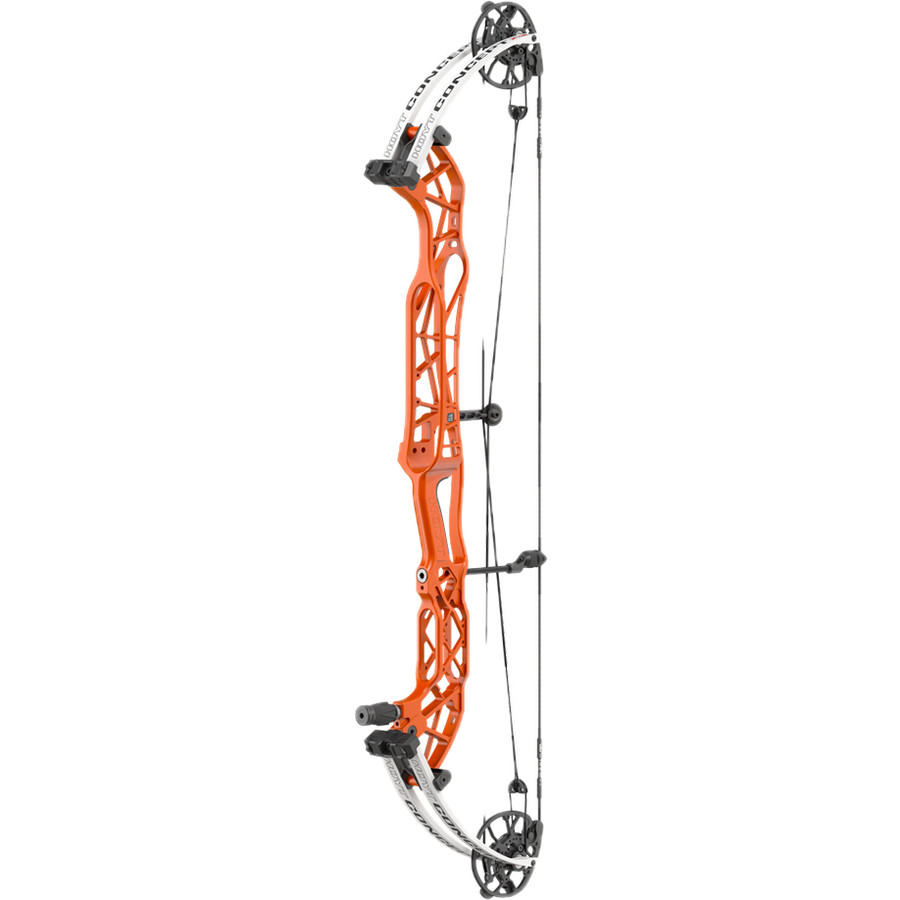

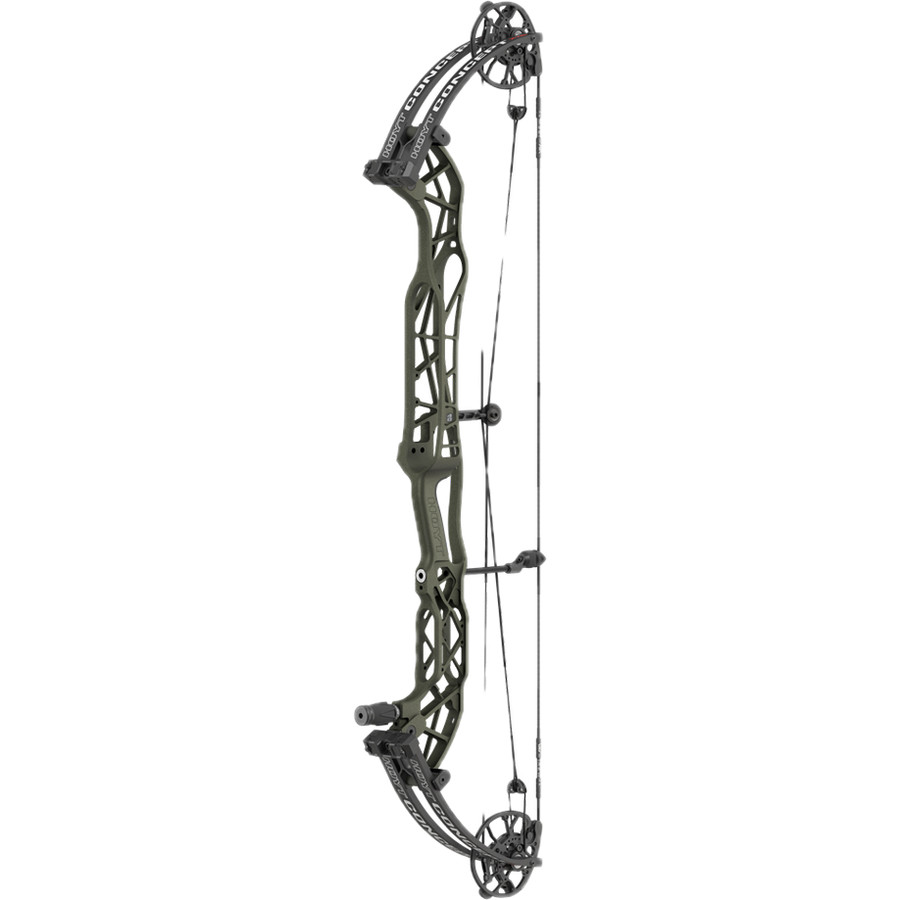

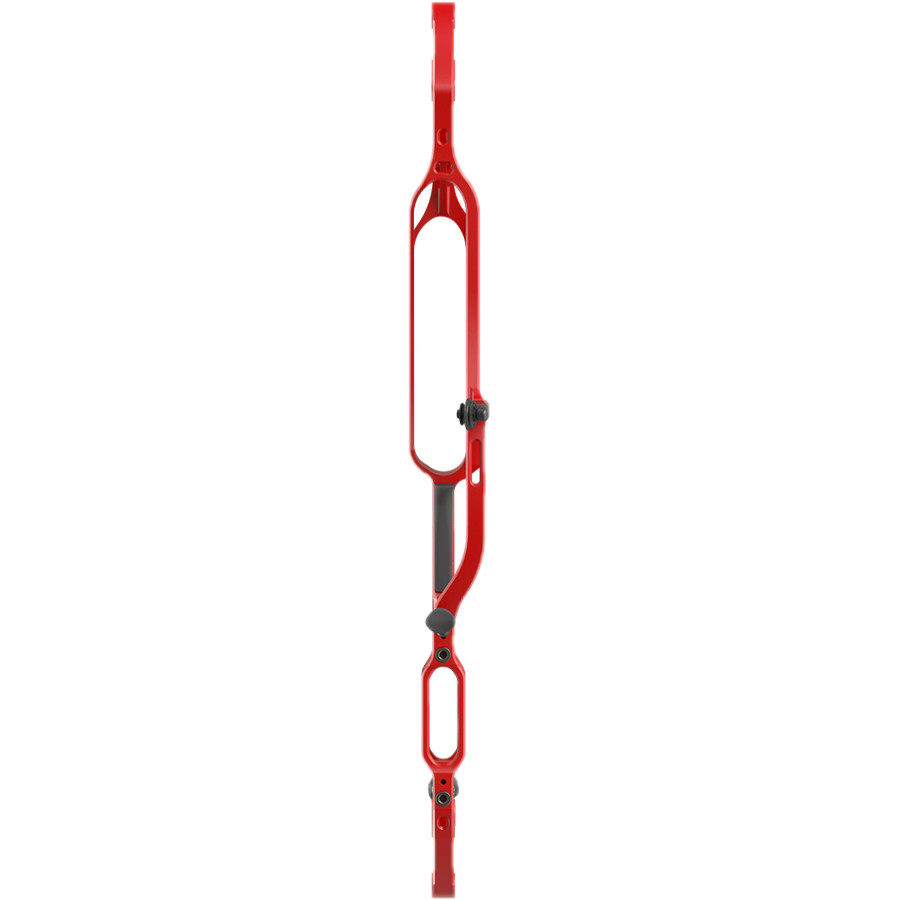

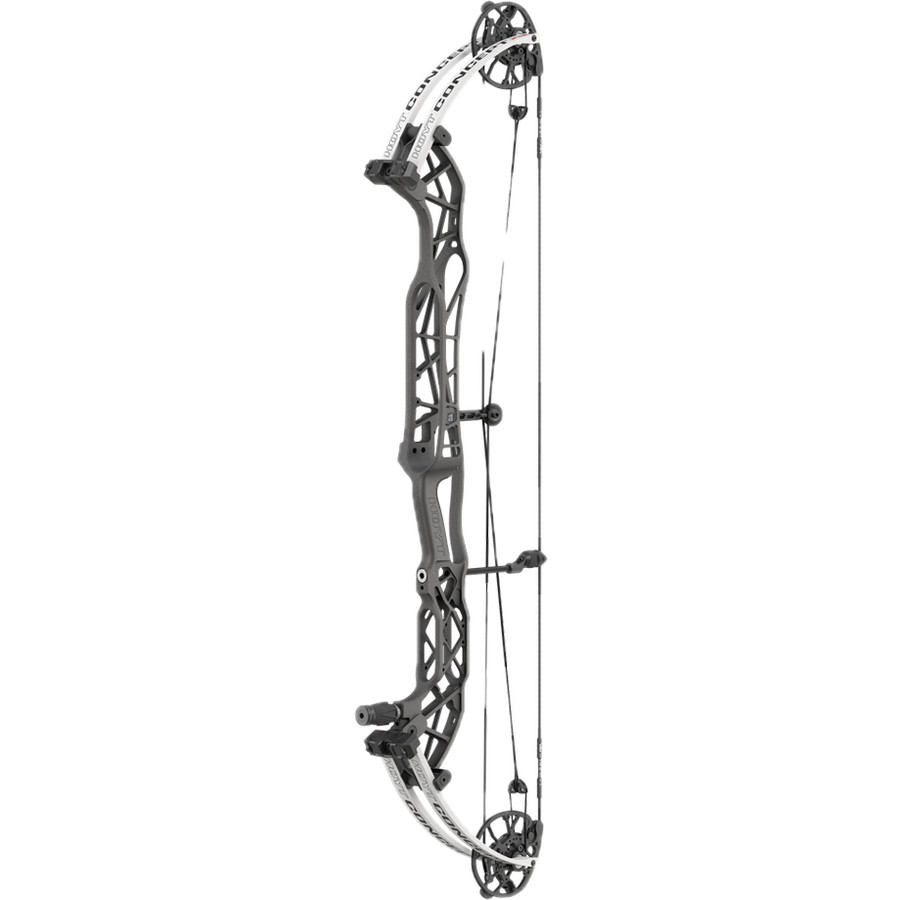

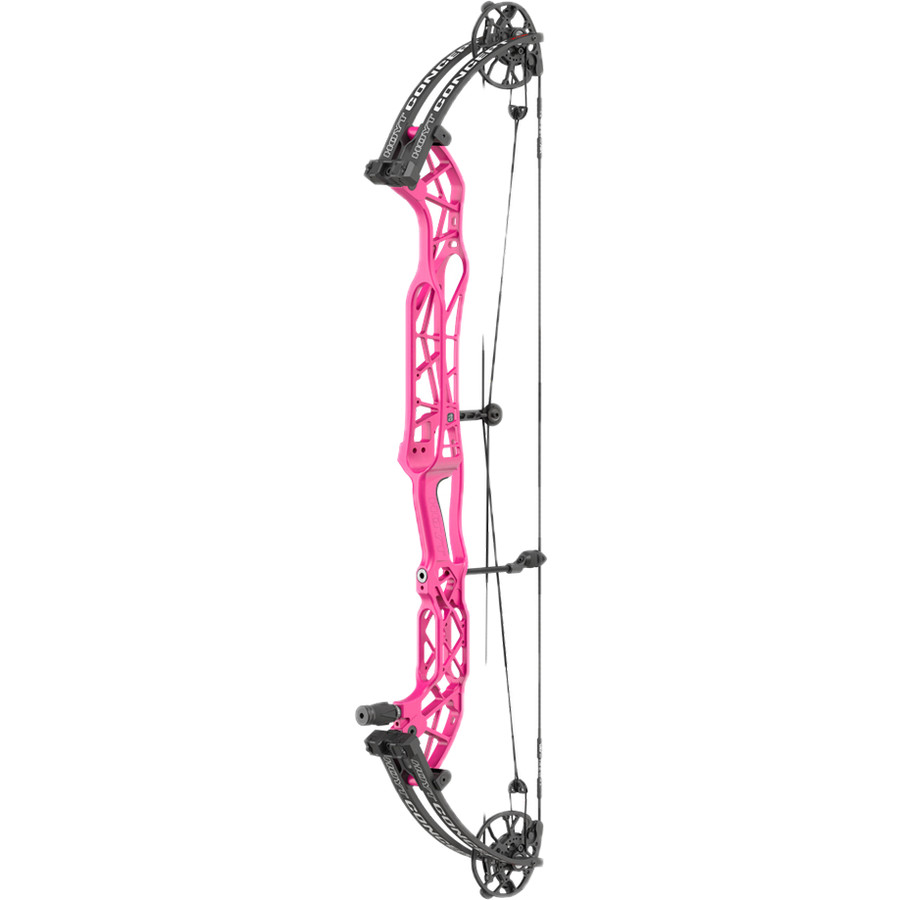

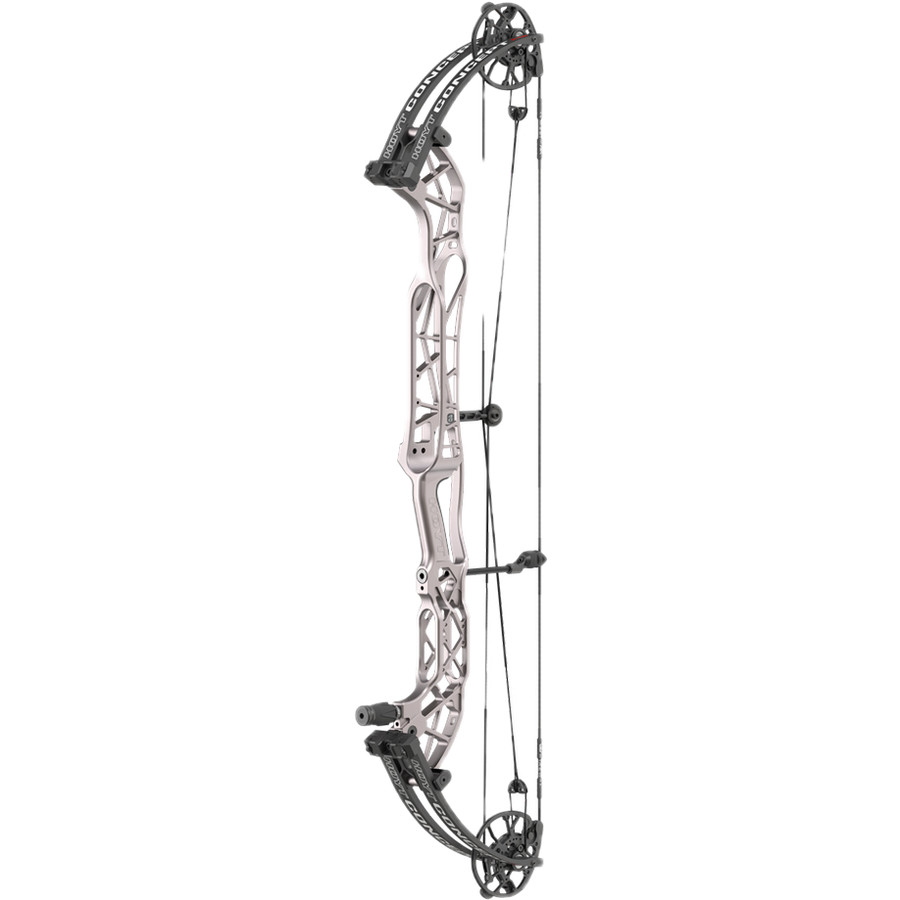

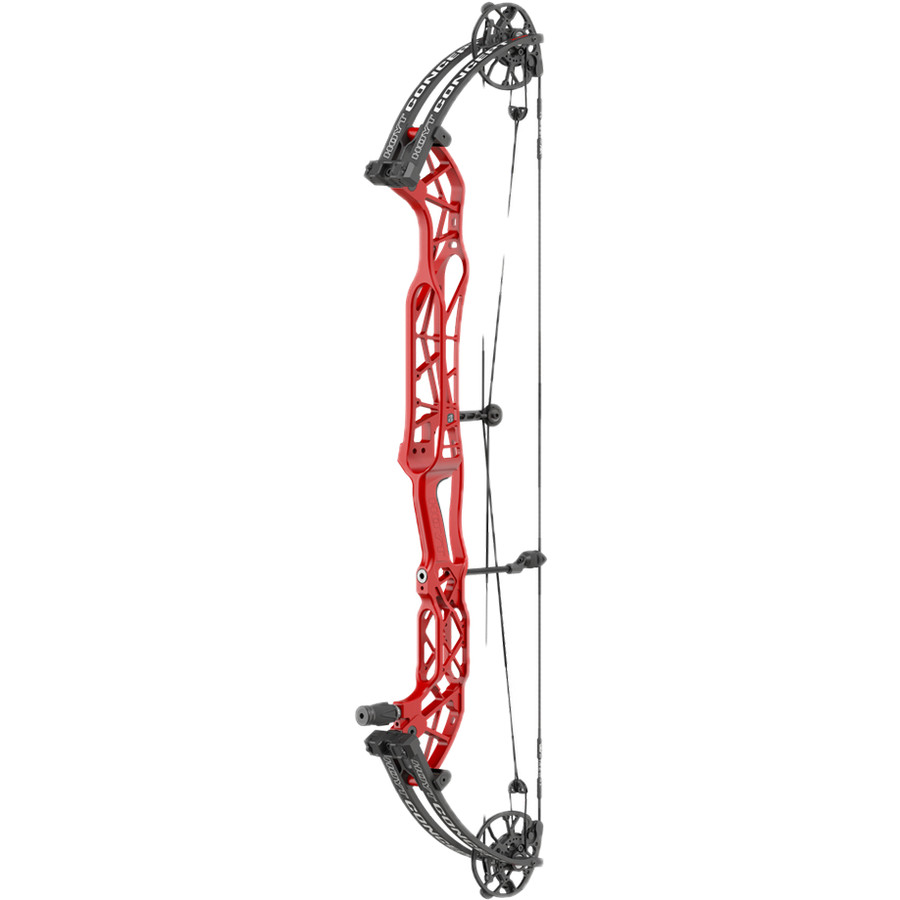

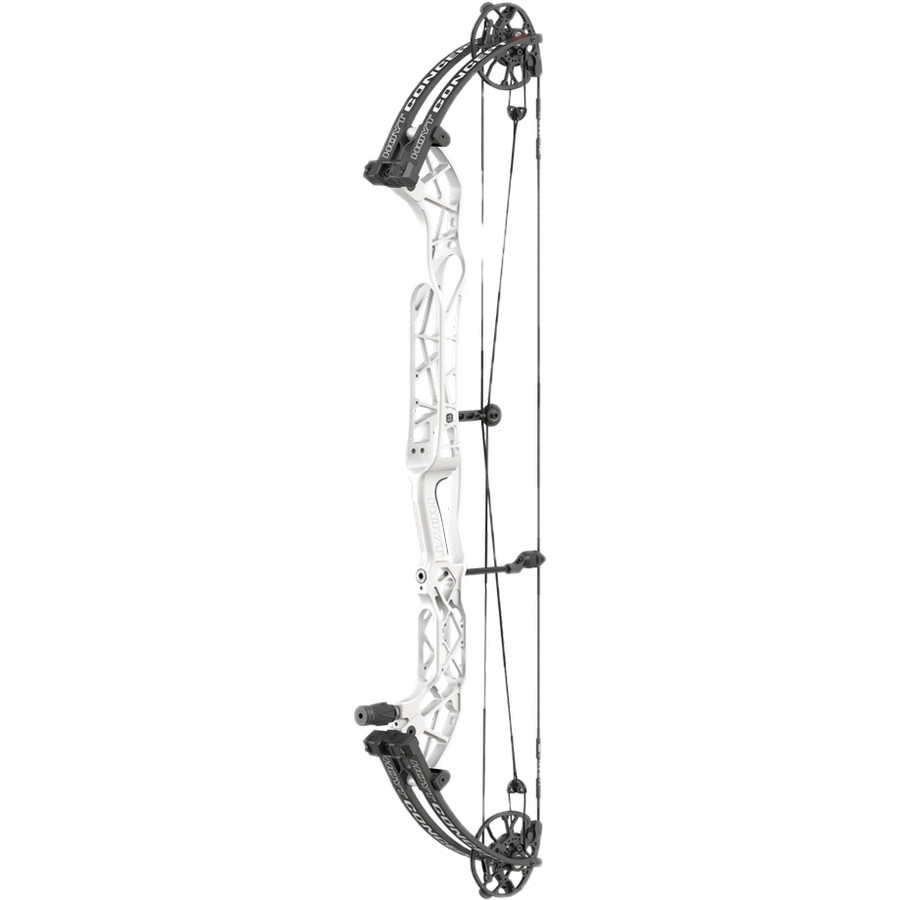

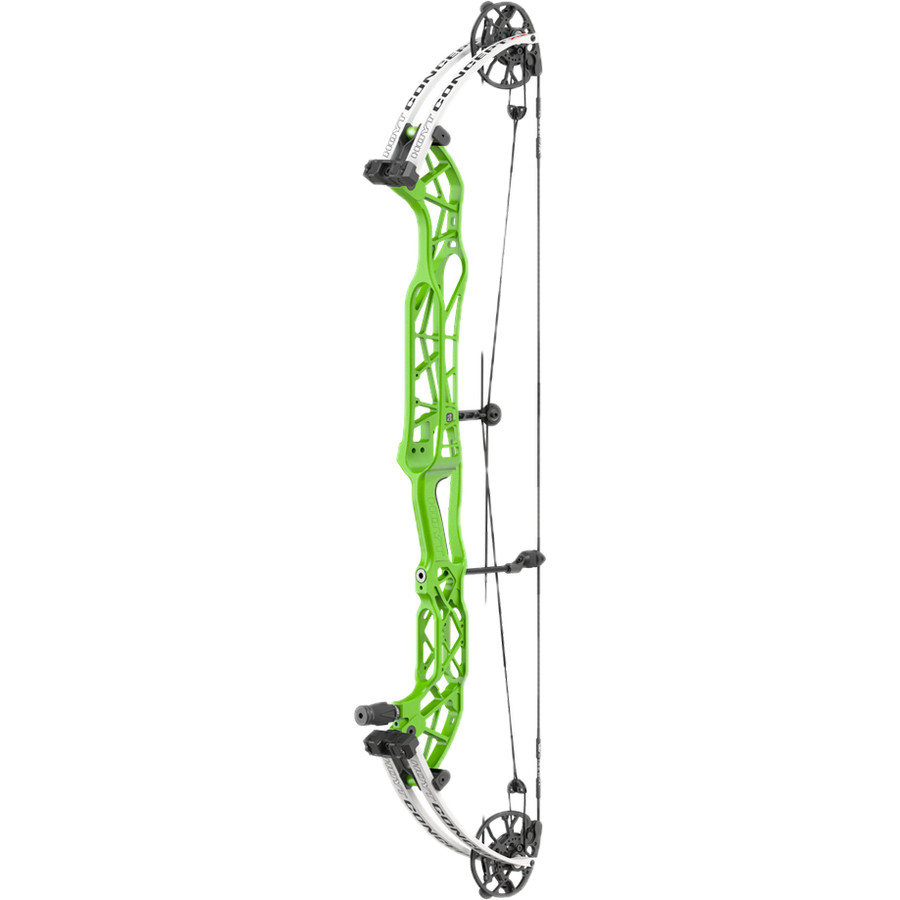

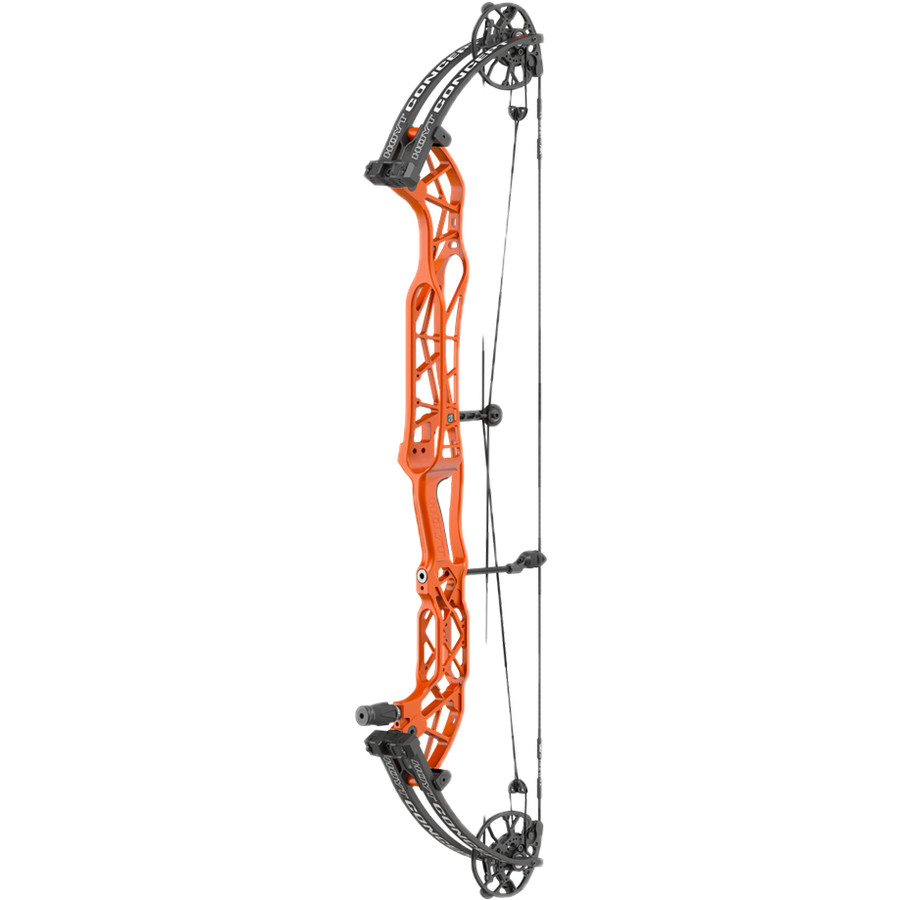

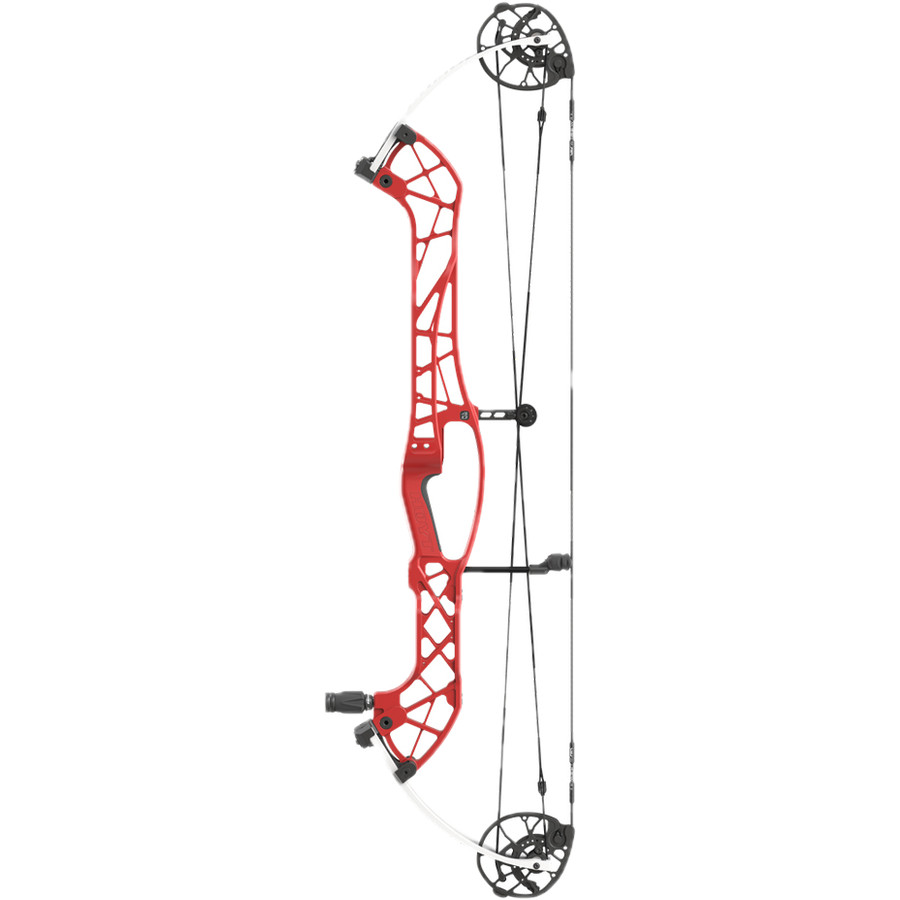

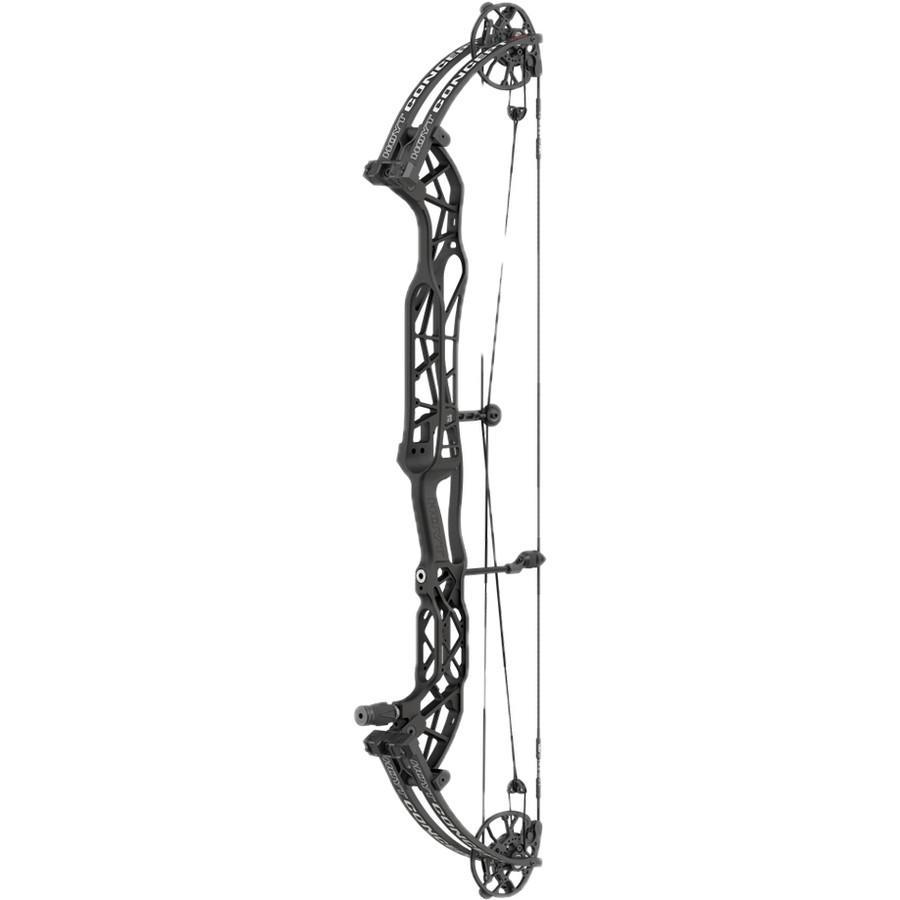

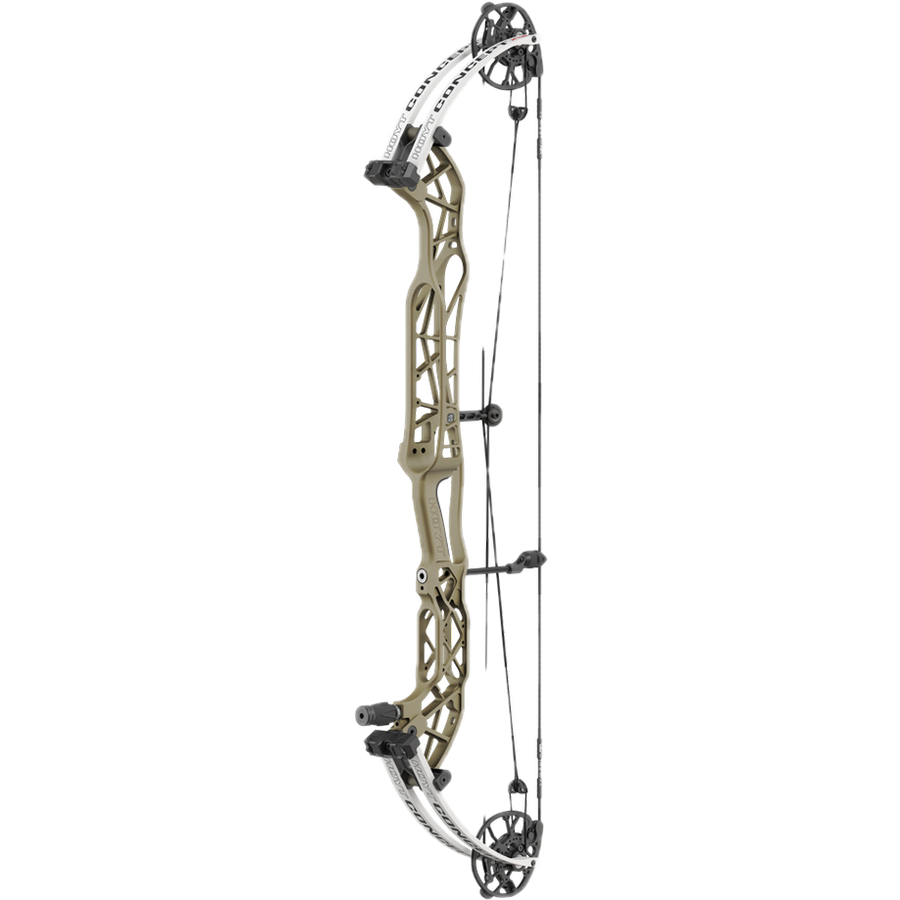

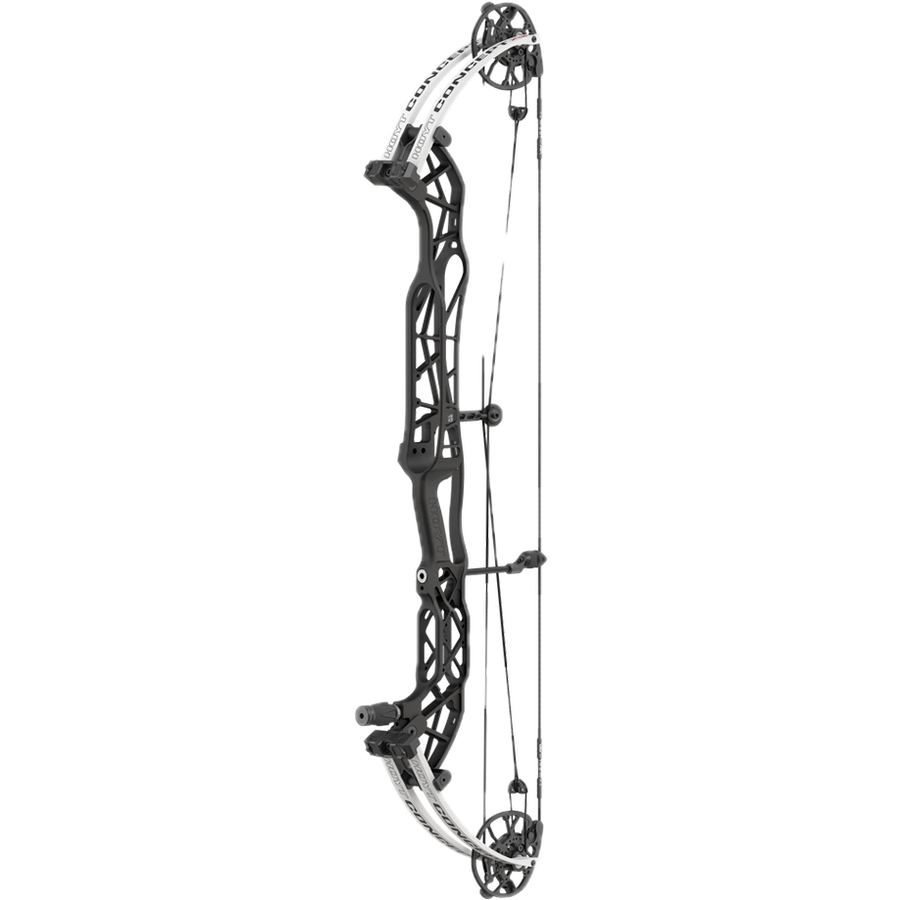

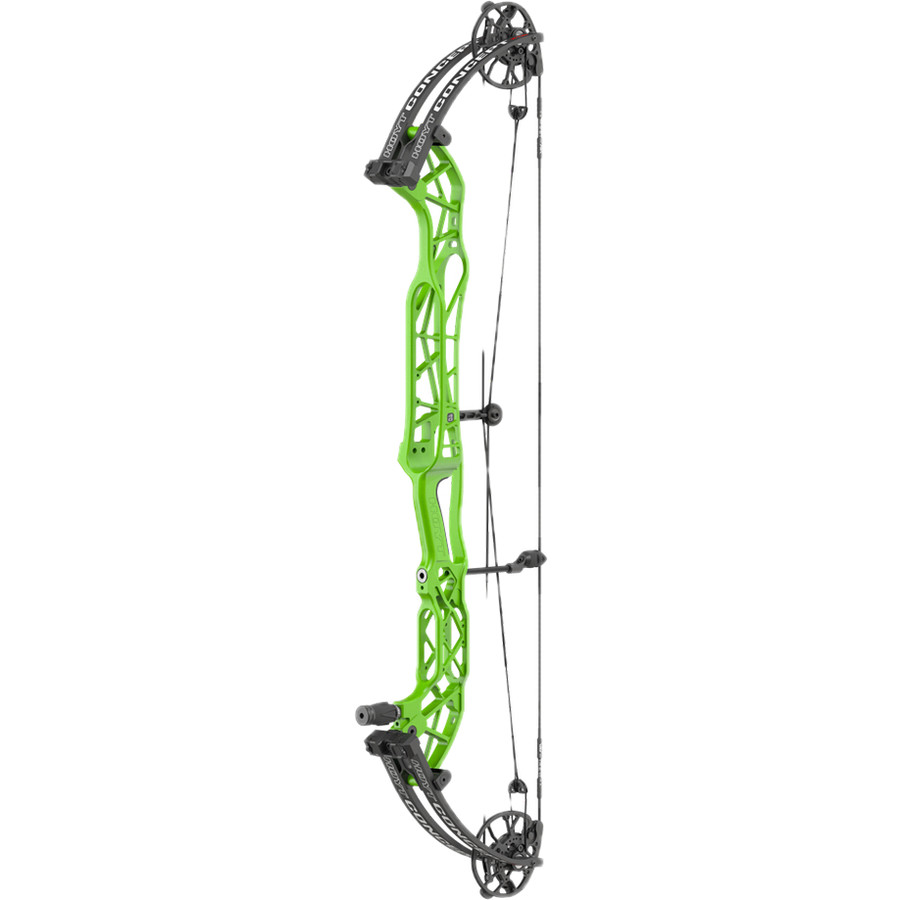

Riser in thirteen colours, limbs in black or white

Note

Supplied as a bare bow, without sight, rest, stabilisation and release
The Concept XTS 37 and Concept XTS 34 are the more manageable options
