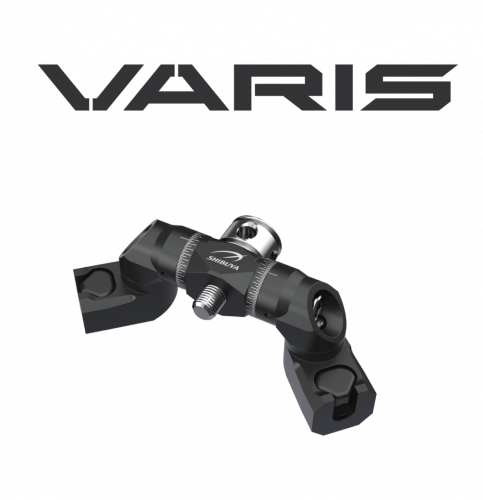

Adjustable V-bar from Shibuya, the link between riser, long rod and side rods.

A V-bar decides at what angle the side rods stand away from the bow, and therefore how their weight acts to the side. On the Varis that angle can be set rather than being fixed by the shape of the part. The housing is CNC machined from aluminium alloy and is wider than its predecessor, which helps it resist twisting under load.

Two details go beyond cosmetics. The threads of the two side mounts run in opposite directions, so the assembly cannot work itself loose while shooting. And the quick disconnect uses a triangular geometry: the long rod comes off for transport and goes back on in exactly the same orientation, with nothing to reset.

The Varis mounts front or rear and works equally for right and left hand. With the supplied bolt it weighs 192 grams, without it 153. That is not light, but it sits right at the bow, so it affects balance far less than the same mass would at the end of a rod.

Features

• Adjustable angle for the side rods
• Housing CNC machined from aluminium alloy, widened for stability
• Opposing thread directions to prevent loosening
• Quick disconnect with triangular geometry for repeatable refitting
• Front or rear mounting, right and left hand
• Bolt in a high strength material, stronger than a 7075 aluminium alloy

Specifications

• Weight: 192 g with bolt, 153 g without
• Bolt weight: around 47 g
• Thread: 5/16-24
• Colour: black

Package Includes

• V-bar
• V-bar bolt
• 6 mm hex key

For more information, please visit the manufacturer website for this product .
