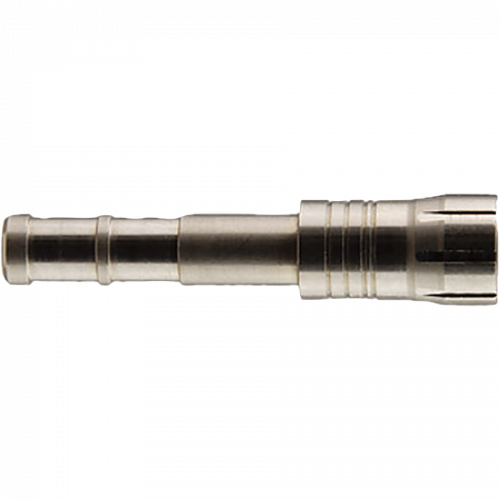

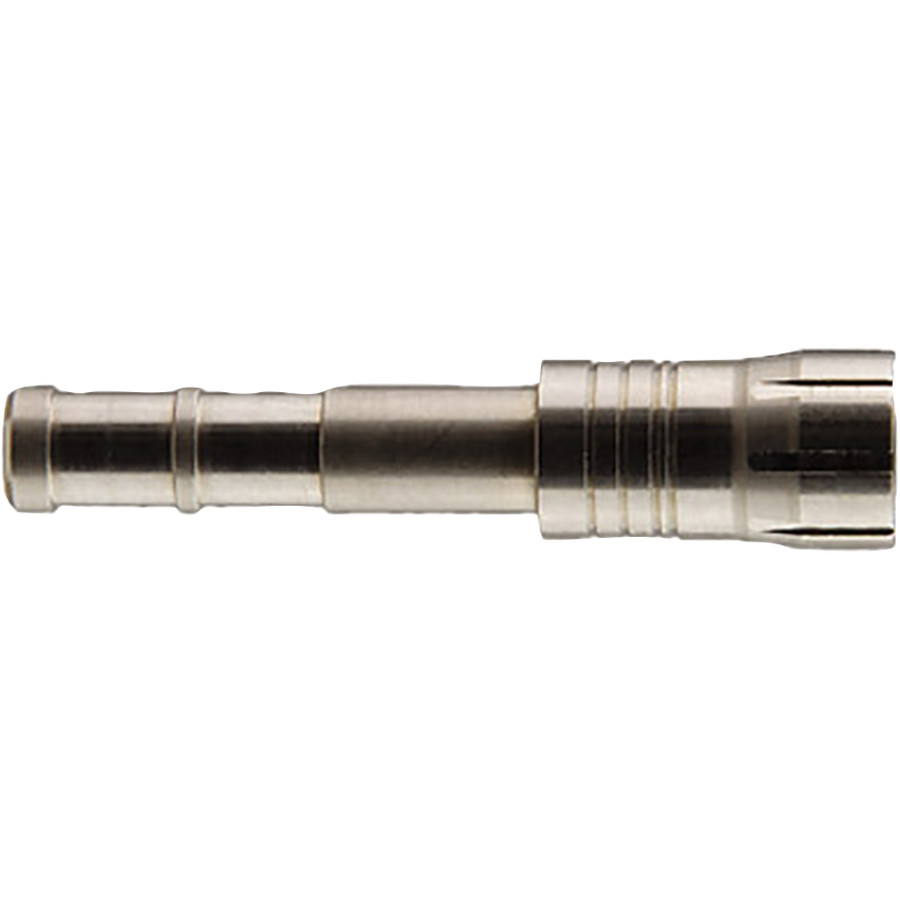

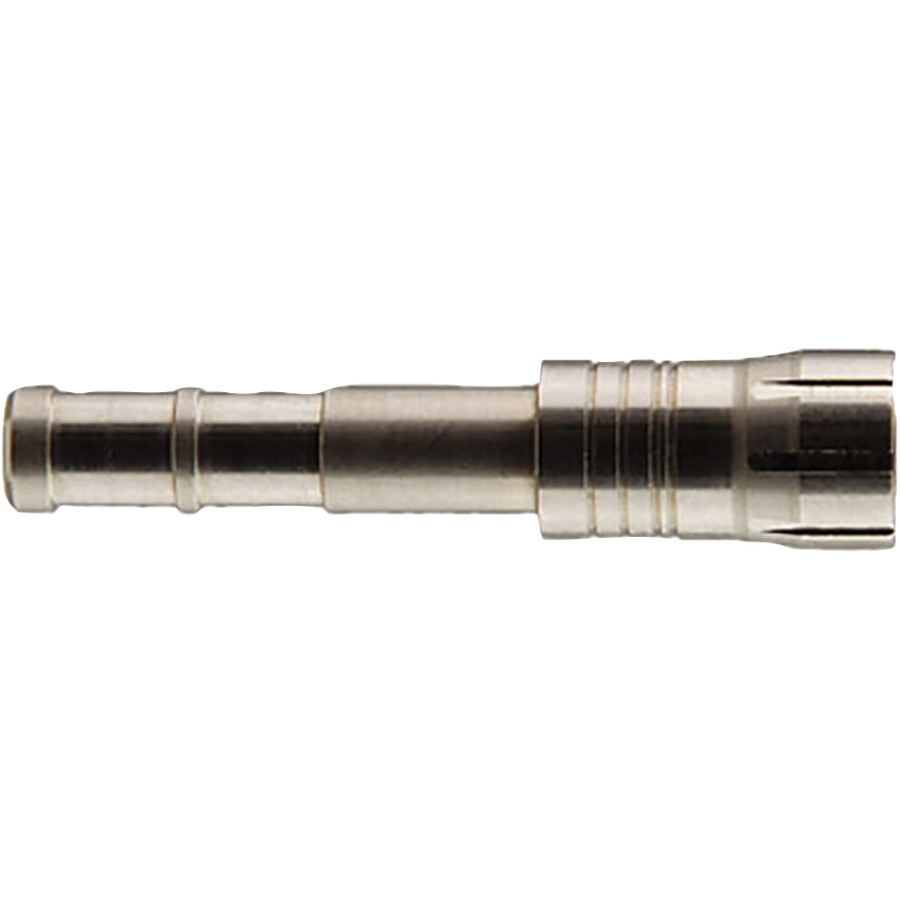

Stainless steel glue-in insert weighing 60 grains, for Victory shafts in the .204 series.

The insert covers Victory's entire .204 family: RIP, RIP XV, RIP TKO and HLR. All four share the same 0.204 inch inside diameter and therefore use the same component range.

The number in the product name is the outside diameter of the insert collar in inches. It is matched to the outside diameter of the shaft it belongs to, so that point and shaft meet without a step. Since a shaft's outside diameter changes with spine, the choice depends on shaft model and spine together, not on spine alone. A 300 spine takes three different sizes depending on the shaft.

Compatibility

At 60 grains the stainless version sits well above the 21 grain aluminium insert from the same range. Those extra 40 grains sit right at the front of the arrow, raising FOC and making the shaft react weaker in dynamic spine. A change from aluminium to stainless steel is therefore worth rechecking against the spine chart.

Features

• Stainless steel glue-in insert for the Victory .204 series
• Collar diameter matched to the individual shaft
• Fits RIP, RIP XV, RIP TKO and HLR
• Raises FOC compared with the aluminium insert
• 8-32 thread for common screw-in points

Specifications

• Material: stainless steel
• Weight: 60 grains
• Thread: 8-32
• Shaft series: Victory .204, meaning 0.204 inch inside diameter
• Available versions: 0.260, 0.264, 0.267 and 0.276
• Packaging: 12 pieces

Note

• RIP XV 200 and HLR 200 require size 0.271, which is not part of this item - ask us if needed.

For more information, please visit the manufacturer website for this product .
