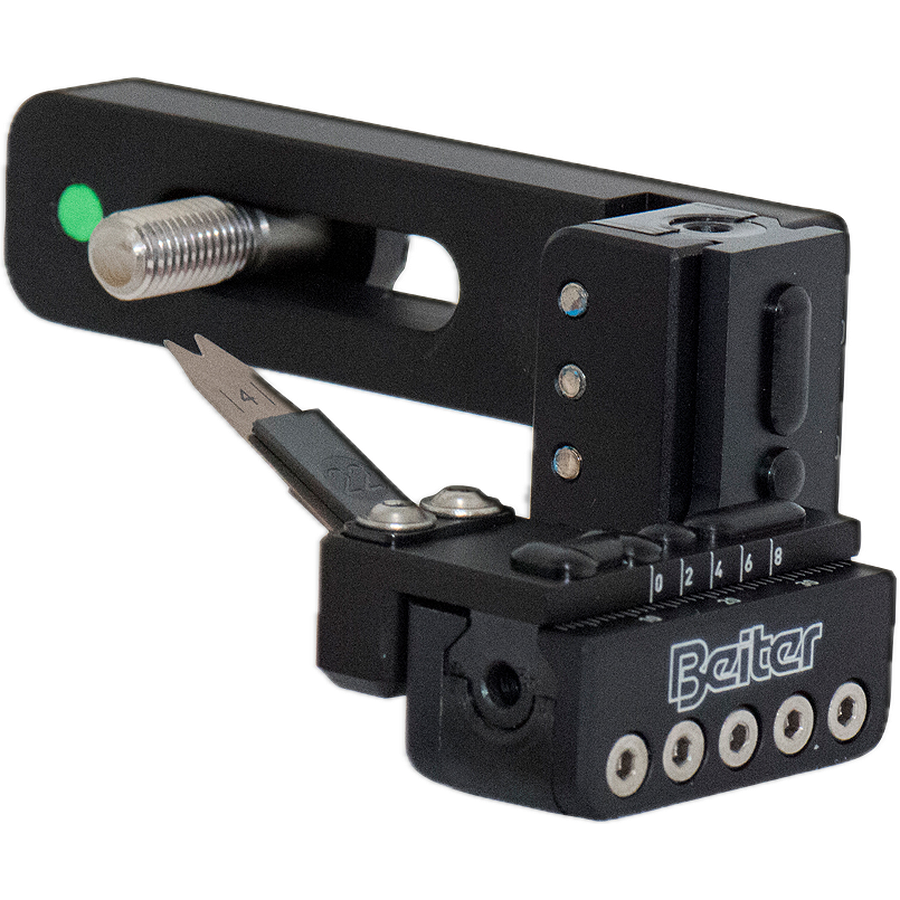

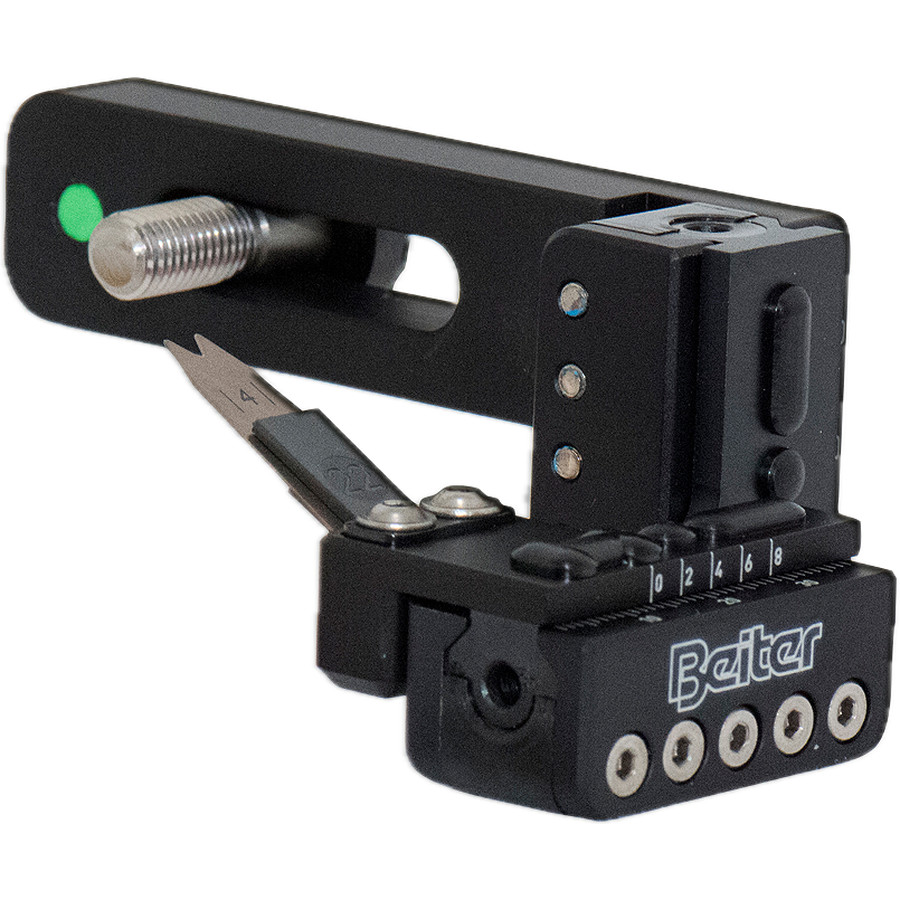

Compound arrow rest with play-free vertical and horizontal adjustment, readable down to 0.2 mm.

At first sight the rest looks massive and bulky, yet the weight stays low: Werner Beiter uses thermoplastics wherever they are sufficient and keeps the stability where it is needed.

Adjustment works without any fixation screws, nothing has to be loosened and retightened. Both scales carry a vernier like a caliper, so settings are reproducible to 0.2 mm. At that resolution the group can be moved with the rest instead of the sight.

Guidance plates of different lengths mount above and below the launcher. They change the stiffness of the launcher and stop it oscillating after the shot, which is often behind poor clearance. The bulge on the underside also guides the arrow sideways as it leaves the bow window. The launcher angle can be set to 30° or 35° by swapping two small blocks.

Features

• Vertical and horizontal adjustment without fixation screws, stepless and free of play
• Vernier on both scales, reproducible to 0.2 mm
• Launcher angle of 30° or 35° via exchangeable blocks
• Guidance plates in different lengths, with a bulge on the underside
• Stainless steel 5/16"-24 screw, flat head with large diameter and hex socket
• Spacer in high impact plastic, allows the screw to be tightened firmly
• Counter screw with an elastomer pad, keeps the riser free of marks
• Launchers in different thicknesses for various arrow diameters

Available Versions

• Standard
• OD88: 28 mm longer
• OD116: 56 mm longer
